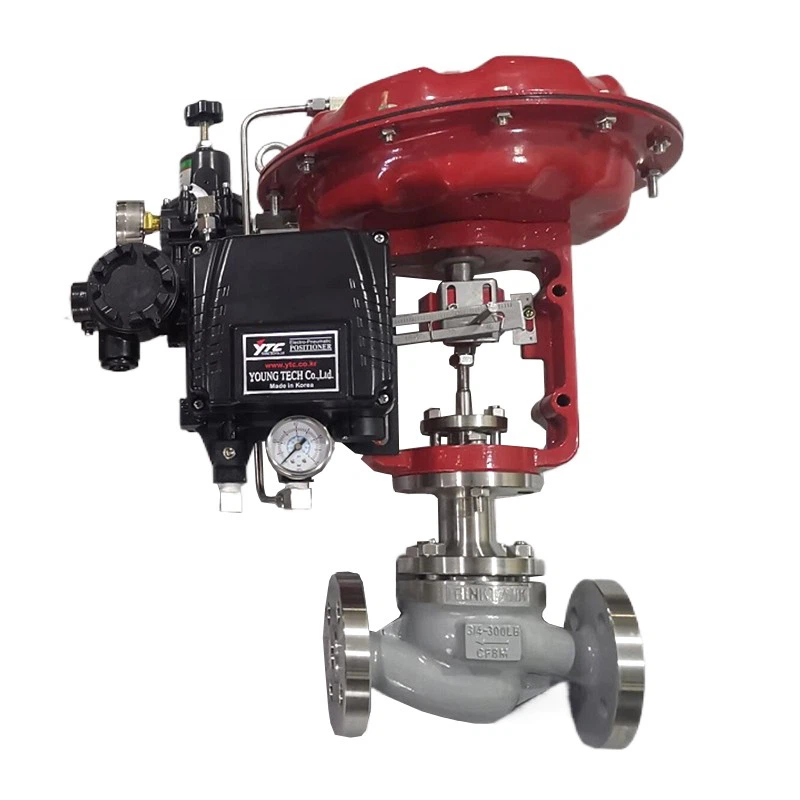

Lub rooj zaum ob chav rooj tswj hwm lub pob hluav taws xob muaj zog, nws muaj cov qauv hluav taws xob, nws muaj cov qauv hluav taws xob tau sib xyaw, cov qauv hluav taws xob tau zoo li qub, uas muaj cov qauv me me thiab cov zis loj Yuam kev, thiab yog qhov tsim nyog dua rau kev ruaj khov zoo, muaj kev ntseeg siab thiab kev tswj kom zoo, muaj kev kub siab hauv qab cov khoom hauv qab thiab yooj yim thaiv.
Qauv: Zjhn
Qhov loj me: DN25 ~ 200mmm
Cov khoom siv ntawm valve lub cev: WCB, 304,316,316L
Cov Ntaub Ntawv Spool: 304, 316+ stl \ ptfe
Lub Rooj Khoom Siv Lub Rooj Zaum: 304, 316+ stl; ptfe
Cov kev siab siab hauv nruab siab: PN16; Xn40; Pn64mpa, chav kawm 150 - chav 600
Kev ua haujlwm kub: -17} ~ 450ºC
Kev Txuas: Flange, Xov, Vuam
Hom rooj: ib lub rooj zaum, ob chav zaum, tes tsho
Bonnet hom: qauv, tsawg kub, tshav kub dissipation, billows foob ntaus
Pneumatic Actuatators: Ntau tus neeg caij nplooj ntoos hlav zaj duab xis Actuatators
Accessories: Fais Octerer, Kev Lim Cua Cua Txo Roorucing Valve, Handaneel, ProtectionValve
Ntau yam kev thov ntau yam: roj, kua, kua, roj av, kev lag luam tshuaj, chaw nres tsheb fais.
Kev Ua Haujlwm: Pneumatic Diaphragm, Pneumatic Piston, Fais Actuator
Actuator:
Qauv: Ntau-Caij Nplooj Hlav Diaphragm Hom Actuator
Cov khoom siv ntawm cov diaphragm: nbr nrog siv ntaub npuag polyester.
Lub caij nplooj ntoo hlav ntau: {{0}}}}}}}. 1 / 0.2mpa.
Cua Muab: {{{0}}}}}. 16 / 0.28mpa.
Huab Cua Kev Txuas Khoom Txuas: M10 * 1.
Ua haujlwm temp: {-30 ~ {+70 degree.
Valve ua yeeb yam: huab cua kom kaw lossis huab cua qhib.
Accessories: tus yeeb yam ,, log.
Tsis muaj: (nrog txoj haujlwm.)
To feakage:<0.5%×Kv.
Intrinsic Erro: + / -1. 5%.
Kev tswj cov khoom: 30: 1.
Cim npe nrov: Pneumatic Diaphragm Ob Chav Rooj Tswj Valve, Tswj Valve
